July 17, 2023 · Hack The Box / Business CTF 2023 reversingxorcpiobinwalkhex-rayskernel-module

Files

Challenge Description

The premise of this reversing challenge frames the target as an embedded operating system pulled from an intercepted deep-space satellite. The goal is to breach the “secure enclave” and recover the security mechanism that protects their encrypted communications.

SEPC
We've extracted an embedded operating system running on an intercepted deep-space satellitle launched by Arodor. If we can breach the secure enclave and extract their security mechanisms, we can crack their encrypted communications

The intended solution path is to extract the kernel object file and the ELF binary from initramfs.cpio.gz using gunzip and cpio, locate the encrypted data along with its XOR algorithm inside checker.ko, and finally XOR the two buffers together to recover the flag.

Recon

The provided artifact is a gzip-compressed cpio archive (initramfs), the RAM-based root filesystem an embedded Linux kernel mounts at boot. After decompressing it with gunzip, the contents are unpacked with cpio in extract mode, which writes the full directory tree to disk.

cpio -idv < initramfs.cpio

To get a quick map of what lives inside the archive without fully unpacking it, binwalk is run against the cpio file. It walks the archive and reports each embedded entry with its offset and file name.

binwalk initramfs.cpio

The output enumerates the standard BusyBox-style usr/sbin and usr/bin utilities expected in an embedded initramfs. One entry stands out: a file name that has been abused to smuggle a CyberChef recipe URL, hinting directly at the XOR-of-hex decoding step needed to solve the challenge.

DECIMAL       HEXADECIMAL     DESCRIPTION
--------------------------------------------------------------------------------
0             0x0             ASCII cpio archive (SVR4 with no CRC), file name: ".", file name length: "0x00000002", file size: "0x00000000"
112           0x70            ASCII cpio archive (SVR4 with no CRC), file name: "usr", file name length: "0x00000004", file size: "0x00000000"
228           0xE4            ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin", file name length: "0x00000009", file size: "0x00000000"
348           0x15C           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/readahead", file name length: "0x00000013", file size: "0x00000011"
500           0x1F4           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/readprofile", file name length: "0x00000015", file size: "0x00000011"
652           0x28C           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/ifplugd", file name length: "0x00000011", file size: "0x00000011"
800           0x320           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/fakeidentd", file name length: "0x00000014", file size: "0x00000011"
952           0x3B8           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/fbset", file name length: "0x0000000F", file size: "0x00000011"
1100          0x44C           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/lpd", file name length: "0x0000000D", file size: "0x00000011"
1244          0x4DC           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/seedrng", file name length: "0x00000011", file size: "0x00000011"
1392          0x570           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/tftpd", file name length: "0x0000000F", file size: "0x00000011"
1540          0x604           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/ubirmvol", file name length: "0x00000012", file size: "0x00000011"
1688          0x698           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/powertop", file name length: "0x00000012", file size: "0x00000011"
1836          0x72C           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/arping", file name length: "0x00000010", file size: "0x00000011"
1984          0x7C0           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/nandwrite", file name length: "0x00000013", file size: "0x00000011"
2136          0x858           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/loadfont", file name length: "0x00000012", file size: "0x00000011"
2284          0x8EC           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/ftpd", file name length: "0x0000000E", file size: "0x00000011"
2428          0x97C           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/telnetd", file name length: "0x00000011", file size: "0x00000011"
2576          0xA10           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/httpd", file name length: "0x0000000F", file size: "0x00000011"
2724          0xAA4           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/rdate", file name length: "0x0000000F", file size: "0x00000011"
2872          0xB38           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/mim", file name length: "0x0000000D", file size: "0x00000011"
3016          0xBC8           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/fsfreeze", file name length: "0x00000012", file size: "0x00000011"
3164          0xC5C           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/ntpd", file name length: "0x0000000E", file size: "0x00000011"
3308          0xCEC           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/svlogd", file name length: "0x00000010", file size: "0x00000011"
3456          0xD80           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/partprobe", file name length: "0x00000013", file size: "0x00000011"
3608          0xE18           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/delgroup", file name length: "0x00000012", file size: "0x00000011"
3756          0xEAC           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/fdformat", file name length: "0x00000012", file size: "0x00000011"
3904          0xF40           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/ubimkvol", file name length: "0x00000012", file size: "0x00000011"
4052          0xFD4           ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/brctl", file name length: "0x0000000F", file size: "0x00000011"
4200          0x1068          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/deluser", file name length: "0x00000011", file size: "0x00000011"
4348          0x10FC          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/chroot", file name length: "0x00000010", file size: "0x00000011"
4496          0x1190          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/chpasswd", file name length: "0x00000012", file size: "0x00000011"
4644          0x1224          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/dnsd", file name length: "0x0000000E", file size: "0x00000011"
4788          0x12B4          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/ubirename", file name length: "0x00000013", file size: "0x00000011"
4940          0x134C          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/dhcprelay", file name length: "0x00000013", file size: "0x00000011"
5092          0x13E4          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/ubidetach", file name length: "0x00000013", file size: "0x00000011"
5244          0x147C          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/ether-wake", file name length: "0x00000014", file size: "0x00000011"
5396          0x1514          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/setfont", file name length: "0x00000011", file size: "0x00000011"
5544          0x15A8          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/killall5", file name length: "0x00000012", file size: "0x00000011"
5692          0x163C          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/rtcwake", file name length: "0x00000011", file size: "0x00000011"
5840          0x16D0          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/setlogcons", file name length: "0x00000014", file size: "0x00000011"
5992          0x1768          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/nologin", file name length: "0x00000011", file size: "0x00000011"
6140          0x17FC          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/i2ctransfer", file name length: "0x00000015", file size: "0x00000011"
6292          0x1894          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/adduser", file name length: "0x00000011", file size: "0x00000011"
6440          0x1928          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/ubiattach", file name length: "0x00000013", file size: "0x00000011"
6592          0x19C0          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/chat", file name length: "0x0000000E", file size: "0x00000011"
6736          0x1A50          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/rdev", file name length: "0x0000000E", file size: "0x00000011"
6880          0x1AE0          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/i2cdump", file name length: "0x00000011", file size: "0x00000011"
7028          0x1B74          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/udhcpd", file name length: "0x00000010", file size: "0x00000011"
7176          0x1C08          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/ubirsvol", file name length: "0x00000012", file size: "0x00000011"
7324          0x1C9C          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/crond", file name length: "0x0000000F", file size: "0x00000011"
7472          0x1D30          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/i2cget", file name length: "0x00000010", file size: "0x00000011"
7620          0x1DC4          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/remove-shell", file name length: "0x00000016", file size: "0x00000011"
7772          0x1E5C          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/add-shell", file name length: "0x00000013", file size: "0x00000011"
7924          0x1EF4          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/addgroup", file name length: "0x00000012", file size: "0x00000011"
8072          0x1F88          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/nanddump", file name length: "0x00000012", file size: "0x00000011"
8220          0x201C          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/i2cset", file name length: "0x00000010", file size: "0x00000011"
8368          0x20B0          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/inetd", file name length: "0x0000000F", file size: "0x00000011"
8516          0x2144          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/popmaildir", file name length: "0x00000014", file size: "0x00000011"
8668          0x21DC          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/nbd-client", file name length: "0x00000014", file size: "0x00000011"
8820          0x2274          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/sendmail", file name length: "0x00000012", file size: "0x00000011"
8968          0x2308          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/ubiupdatevol", file name length: "0x00000016", file size: "0x00000011"
9120          0x23A0          ASCII cpio archive (SVR4 with no CRC), file name: "usr/sbin/i2cdetect", file name length: "0x00000013", file size: "0x00000011"
9272          0x2438          ASCII cpio archive (SVR4 with no CRC), file name: "usr/bin", file name length: "0x00000008", file size: "0x00000000"
9392          0x24B0          ASCII cpio archive (SVR4 with no CRC), file name: "usr/bin/realpath", file name length: "0x00000011", file size: "0x00000011"
9540          0x2544          ASCII cpio archive (SVR4 with no CRC), file name: "usr/bin/microcom", file name length: "0x00000011", file size: "0x00000011"
9688          0x25D8          ASCII cpio archive (SVR4 with no CRC), file name: "usr/bin/shred", file name length: "0x0000000E", file size: "0x00000011"
9832          0x2668          ASCII cpio archive (SVR4 with no CRC), file name: "usr/bin/uniq", file name length: "0x0000000D", file size: "0x00000011"
9976          0x26F8          ASCII cpio archive (SVR4 with no CRC), file name: "usr/bin/hd", file name length: "0x0000000B", file size: "0x00000011"
10120         0x2788          ASCII cpio archive (SVR4 with no CRC), file name: "usr/bin/traceroute6", file name length: "0x00000014", file size: "0x00000011"
10272         0x2820          ASCII cpio archive (SVR4 with no CRC), file name: "usr/bin/showkey", file name length: "0x00000010", file size: "0x00000011"
10420         0x28B4          ASCII cpio archive (SVR4 with no CRC), file name: "usr/bin/unzip", file name length: "0x0000000E", file size: "0x00000011"
10564         0x2944          ASCII cpio archive (SVR4 with no CRC), file name: "usr/bin/last", file name length: "0x0000000D", file size: "0x00000011"
10708         0x29D4          ASCII cpio archive (SVR4 with no CRC), file name: "usr/bin/reset", file name length: "0x0000000E", file size: "0x00000011"
10852         0x2A64          ASCII cpio archive (SVR4 with no CRC), file name: "usr/bin/nproc", file name length: "0x0000000E", file size: "0x00000011"
10996         0x2AF4          ASCII cpio archive (SVR4 with no CRC), file name: "usr/bin/https://gchq.github.io/CyberChef/#recipe=Unescape_string(XOR(%7B'option':'Hex','string':'b4e4e9ab09364ac2a514e53566c399145a34f118917d2370fab53dfa3de500d16915f0a68348c6302e4529020aa90f38890dac1c897cf4d3f06b2f21b7d8c0fb'%7D,'Standard',false)&input=XHhmY1x4YjBceGFiXHhkMFx4NzlceDQzXHgyNlx4YWVceGNjXHg3YVx4ODJceDZhXHgwMlx4ZjdceGVkXHgyMFx4MDVceDUyXHg4M1x4MjhceGZjXHgyMlx4NDhceDQzXHg4OFx4ZGJceDBlXHg5Nlx4MDhceDk1XHgzNFx4YjI)

Reversing the Kernel Module

Among the extracted files is the kernel object checker.ko. Loading it into the Hex-Rays decompiler reveals two global byte buffers. The first, byte_3C0, is a 64-byte buffer that acts as the XOR key; the second, byte_400, is the 34-byte encrypted payload. Both are flagged “weak” by the decompiler, indicating they are statically initialized data.

char byte_3C0[64] =
{
  '\xB4',
  '\xE4',
  '\xE9',
  '\xAB',
  '\t',
  '6',
  'J',
  '\xC2',
  '\xA5',
  '\x14',
  '\xE5',
  '5',
  'f',
  '\xC3',
  '\x99',
  '\x14',
  'Z',
  '4',
  '\xF1',
  '\x18',
  '\x91',
  '}',
  '#',
  'p',
  '\xFA',
  '\xB5',
  '=',
  '\xFA',
  '=',
  '\xE5',
  '\0',
  '\xD1',
  'i',
  '\x15',
  '\xF0',
  '\xA6',
  '\x83',
  'H',
  '\xC6',
  '0',
  '.',
  'E',
  ')',
  '\x02',
  '\n',
  '\xA9',
  '\x0F',
  '8',
  '\x89',
  '\r',
  '\xAC',
  '\x1C',
  '\x89',
  '|',
  '\xF4',
  '\xD3',
  '\xF0',
  'k',
  '/',
  '!',
  '\xB7',
  '\xD8',
  '\xC0',
  '\xFB'
}; // weak
char byte_400[34] =
{
  '\xFC',
  '\xB0',
  '\xAB',
  '\xD0',
  'y',
  'C',
  '&',
  '\xAE',
  '\xCC',
  'z',
  '\x82',
  'j',
  '\x02',
  '\xF7',
  '\xED',
  ' ',
  '\x05',
  'R',
  '\x83',
  '(',
  '\xFC',
  '\"',
  'H',
  'C',
  '\x88',
  '\xDB',
  '\x0E',
  '\x96',
  '\b',
  '\x95',
  '4',
  '\xB2',
  'Z',
  'h'
}; // weak

Recovering the Flag

The module’s check logic XORs the encrypted buffer against the key. Reproducing that with a small XOR helper, feeding it the encrypted byte_400 bytes and the byte_3C0 key, immediately yields the start of the flag. With only the first 32 encrypted bytes, the plaintext is recovered up to k3rn3l5p4c before the buffer runs short.

xor(b'\xfc\xb0\xab\xd0\x79\x43\x26\xae\xcc\x7a\x82\x6a\x02\xf7\xed\x20\x05\x52\x83\x28\xfc\x22\x48\x43\x88\xdb\x0e\x96\x08\x95\x34\xb2',b'\xb4\xe4\xe9\xab\x09\x36\x4a\xc2\xa5\x14\xe5\x35\x66\xc3\x99\x14\x5a\x34\xf1\x18\x91\x7d\x23\x70\xfa\xb5\x3d\xfa\x3d\xe5\x00\xd1\x69\x15\xf0\xa6\x83\x48\xc6\x30\x2e\x45\x29\x02\x0a\xa9\x0f\x38\x89\x0d\xac\x1c\x89\x7c\xf4\xd3\xf0\x6b\x2f\x21\xb7\xd8\xc0\xfb')
b'HTB{pulling_d4t4_fr0m_k3rn3l5p4c\x95\xa5[v\xfa\x0b\xe0\x9e\xe2?\xabh\x08^\xe2\x18\x8c_/4u^\xbc\x90x\xb0!\xb7\xbfM\xf4I'

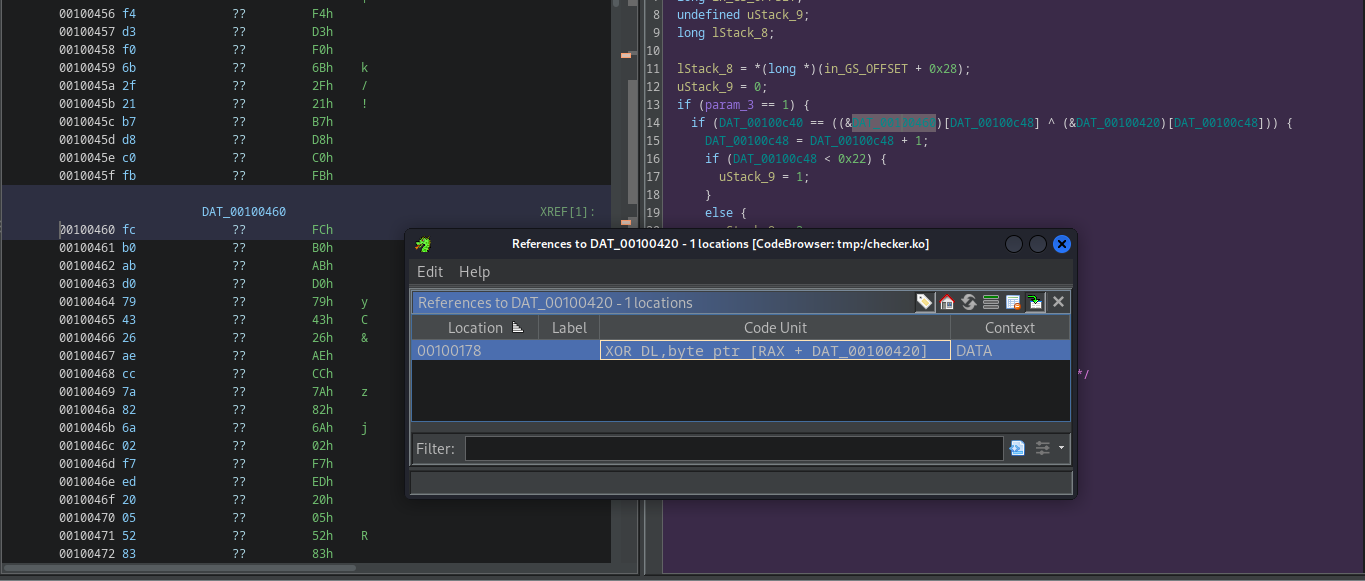

The decompiler initially showed only 32 bytes for byte_400, but the real encrypted buffer is 34 bytes long. Appending the two trailing bytes (\x5a\x68, i.e. Z and h) to the input completes the XOR and reveals the closing brace, producing the full flag.

>>> xor(b'\xfc\xb0\xab\xd0\x79\x43\x26\xae\xcc\x7a\x82\x6a\x02\xf7\xed\x20\x05\x52\x83\x28\xfc\x22\x48\x43\x88\xdb\x0e\x96\x08\x95\x34\xb2\x5a\x68',b'\xb4\xe4\xe9\xab\x09\x36\x4a\xc2\xa5\x14\xe5\x35\x66\xc3\x99\x14\x5a\x34\xf1\x18\x91\x7d\x23\x70\xfa\xb5\x3d\xfa\x3d\xe5\x00\xd1\x69\x15\xf0\xa6\x83\x48\xc6\x30\x2e\x45\x29\x02\x0a\xa9\x0f\x38\x89\x0d\xac\x1c\x89\x7c\xf4\xd3\xf0\x6b\x2f\x21\xb7\xd8\xc0\xfb')
b'HTB{pulling_d4t4_fr0m_k3rn3l5p4c3}\x0c\x16(\x98\xbfs\x08\xeb\xe5x\x88\xc3\r\xcfd-\xa9N\nT\x08\xf1\xb8(\xa7\xfa\xb9N\xc8n'

The same operation can be performed visually with the CyberChef recipe that was hidden in the initramfs file name, confirming the recovered flag.

The flag is HTB{pulling_d4t4_fr0m_k3rn3l5p4c3}.
